Product introduction
Product Description:

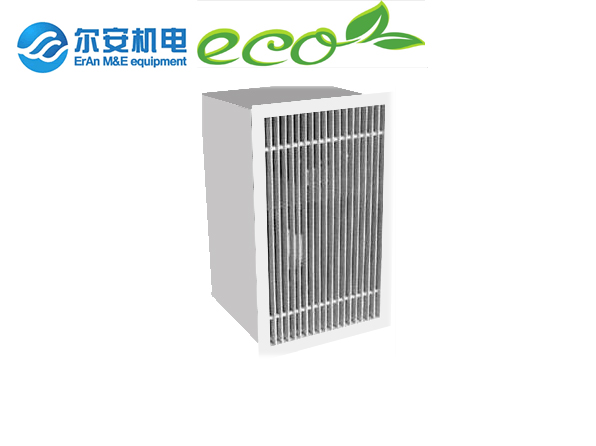

Fireproof Outlet (Normal Open) （FHK）
Usually it is open, once fire occurs, the gas temperature of duct arrives at 70°C, and then the fuse protector will be fused or driven by shape memory alloy, the valve will close under the effect of torisional spring force .When the temperature return to normal, the valve opens automatically.
Features:
(1)Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.
(2)Duration, long service life.
(3)Easy installation.
(4)The flange is bended directly by the frame.
(5)The valve size and color can be customized according to customer's requirements.
(6)Used as air vent to adjust air flow direction
(7)Surface plate is aluminum alloy
Advantages:
(1)Excellent quality control processes, all products have been inspected strictly.
(2)The quality of products has reached the standard of “Code of acceptance for construction quality of ventilation and air conditioning works" (GB50243-2002) and "Fire dampers for building venting and smoke-venting system" (GB15930 2007).
(3)Complete accessories production and distribution make it easier to install.
Specification:
Place of Origin: Chongqing, China (Mainland) Brand Name: Eran
|
NO.
|
NAME
|
SPECIFICATION
|
|
1
|
Flange width
|
Valve side length (MM)
|
Width (MM)
|
|
A≤630
|
30
|
|
630<A≤1500
|
30
|
|
1500<A≤2500
|
30
|
|
A>2500
|
30
|
|
2
|
Material
|
Adopt high quality galvanized steel, riveting by non-rivet method
|
|
3
|
Valve thickness
|
δ2.0MM high quality galvanized sheet
|
|
4
|
Blade shaft
|
Φ12 round steel
|
|
5
|
Shaft sleeve
|
Brass
|
|
6
|
Steel valve surface anticorrosive disposal
|
Pickling, phosphating then spraying.
|
|
7
|
Temperature-
fuse protector
|
70 degrees or shape memory alloy driving
|
|
8
|
Control mechanism classification
|
Manual on and off device, according to the customer need to adjust the air volume output signal
|
|
9
|
Micro switch
|
Contact capacity 380V 3A
|
|
10
|
Connection port
|
Contact rating 500V 3A
|
|
11
|
Action method
|
At 70 degrees, temperature-fuse protector motion or Shape memory alloy driving, temperature returned to normal, the valve automatically open
|
|
12
|
Air leakage
|
In standard conditions, as the differential pressure is 300 Pa, the air leakage is less than the national standards.
|
- 1.Material:δ2.0MM high quality galvanized sheet
- 2.70 degrees or shape memory alloy driving
- 3.HAVC system
- Product description: Widely used in pipeline’s inlet and outlet entrance of ventilation air conditioning system which need to be fireproof. General installs in the terminal or side of duct or wall.
|
