Product Description:

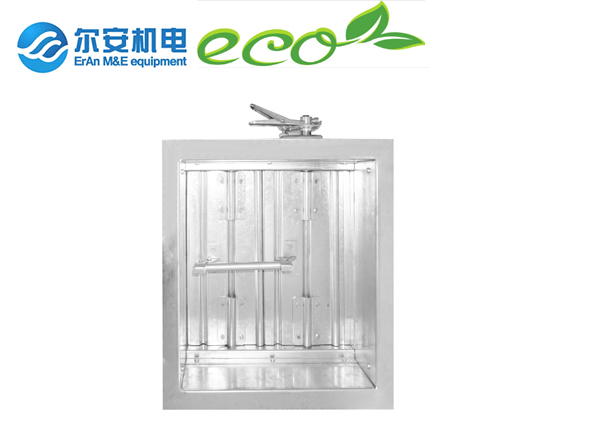

Smoke Proof and Fire Proof Regulating Damper(Normal Open)(FHDT-70)
Usually it is open, the angle of blade is adjustable at the range of 0 degree to 90 degrees manually, once fire occurs, the gas temperature of duct arrives at 70 degrees, and then the fuse protector will be fused and the damper will close under the pull of spring. Compared with the ordinary fire proof damper, it also can be closed by DC24V electrical control. It is applied to the pipeline of smoke extraction which need fireproofing, it can isolate smoke’s leaking and stop the fire spreading.
Features:
(1) Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.
(2) Duration, long service life.
(3) Easy installation.
(4) The flange is bended directly by the frame.
(5) The valve size and color can be customized according to customer's requirements.
Advantages:
(1) Excellent quality control processes, all products have been inspected strictly.
(2) The quality of products has reached the standard of “Code of acceptance for construction quality of ventilation and air conditioning works" (GB50243-2002) and "Fire dampers for building venting and smoke-venting system" (GB15930 2007).
(3) Complete accessories production and distribution make it easier to install.
Specification:
Place of Origin: Chongqing, China (Mainland) Brand Name: Eran
|
NO.
|
NAME
|
SPECIFICATION
|
|
1
|
Flange width
|
Valve side length (MM)
|
Width (MM)
|
|
A≤630
|
30
|
|
630<A≤1500
|
30
|
|
1500<A≤2500
|
30
|
|
A>2500
|
30
|
|
2
|
Material
|
Adopt high quality galvanized steel, riveting by non-rivet method
|
|
3
|
Valve thickness
|
δ2.0MM high quality galvanized sheet
|
|
4
|
Blade shaft
|
Φ12 round steel
|
|
5
|
Shaft sleeve
|
Brass
|
|
6
|
Steel valve surface anticorrosive disposal
|
Pickling, phosphating then spraying.
|
|
7
|
Temperature-
fuse protector
|
70 degrees
|
|
8
|
Control mechanism classification
|
Manual on and off device, temperature control, electric close, output signal
|
|
9
|
Nominal voltage
|
DC24V
|
|
10
|
Micro switch
|
Contact capacity 380V 3A
|
|
11
|
Connection port
|
Contact rating 500V 3A
|
|
12
|
Action method
|
At 70 degrees, temperature-fuse protector motion, the valve under the spring pulled shut automatically, 0-90 degrees manually adjust the blade opening angle
|
|
13
|
Reset method
|
Manual reset
|
|
14
|
Air leakage
|
Standard conditions, differential pressure of 300 Pa, air leakage is less than the national standards.
|
- 1.Fireproofing
- 2.Adopt high quality galvanized steel
- 3.δ 1.5-δ2.0mm High quality galvanized sheet
- 4.Temperature control
- Product description: It can isolate smoke’s leaking and stop the fire spreading.
|
